Top 5 Features of Thunderbolt 5 & Why They Matter

So, what’s the big deal about Thunderbolt 5? In a nutshell, it’s faster, more powerful, and more capable than Thunderbolt 4 in almost every way. Thunderbolt 5 doubles the bandwidth of its predecessor (jumping from 40 Gbps to 80 Gbps), and even offers a “Bandwidth Boost” mode up to 120 Gbps in a single direction for intensive display setups. That’s potentially three times the throughput of Thunderbolt 4 – an upgrade that has content creators and gamers taking notice. And don’t worry: it still uses the familiar USB-C port and remains broadly compatible with your existing Thunderbolt and USB gear. In other words, Thunderbolt 5 is all about more speed, more displays, more power, and more everything. And it still works with your older Thunderbolt devices.

1. Blazing Fast Bandwidth (Double the Speed of Thunderbolt 4)

The headline feature of Thunderbolt 5 is speed. Lots of speed. It doubles the data transfer bandwidth of Thunderbolt 4, jumping from 40 Gbps to 80 Gbps of bi-directional throughput. That means significantly faster transfers of huge files, backups, or video libraries. But it doesn’t stop there: Thunderbolt 5 also introduces a dynamic “Bandwidth Boost” that can temporarily crank performance up to 120 Gbps in a single direction when driving high-resolution displays. In practical terms, Thunderbolt 5 can deliver as much as 3x the bandwidth of Thunderbolt 4 in certain scenarios.

For you, this translates into ridiculously fast data transfers. Copying a 4K movie collection or loading giant project files from an external SSD will feel less like watching paint dry and more like a quick coffee break. Thunderbolt 5’s 80 Gbps baseline is already double the speed of Thunderbolt 4, and that 120 Gbps boost kicks in for video output when needed. In short, it’s like going from that old Huffy in your garage, to that cool red motorcycle in Akira. If Thunderbolt 4 was fast, Thunderbolt 5 is “blink and you’ll miss it” fast.

Why it matters: This massive bandwidth increase benefits anyone working with large amounts of data. Content creators handling 4K/8K videos or ultra-high-res photos will see transfers and backups complete much quicker. Gamers can load game assets faster from Thunderbolt 5 external drives. Even everyday tasks like syncing a phone or doing a system backup get a speed boost. In the Thunderbolt 5 vs Thunderbolt 4 showdown on raw bandwidth, Thunderbolt 5 is the clear winner, delivering the kind of headroom that makes high-end workflows buttery smooth for years to come.

2. Multi-Monitor & High-Refresh Display Support

All that extra Thunderbolt 5 bandwidth isn’t just for bragging rights – it unlocks some serious display capabilities. Thunderbolt 5 lets you connect more and better monitors than Thunderbolt 4 could. With Thunderbolt 5, you can run up to two 8K displays at 60 Hz, or as many as three 4K displays at 144 Hz simultaneously. (Yes, three 4K monitors at 144 Hz – that’s a lot of pixels flying around.) In comparison, Thunderbolt 4 was limited to one 8K (60 Hz) or two 4K (60 Hz) screens. Thunderbolt 5 is basically a dream come true for multi-monitor enthusiasts, content creators, and gamers who crave ultra-high resolution and high refresh rates.

Are you a gamer with a thirst for high refresh rates? Thunderbolt 5 has you covered there, too. It can support a single display up to a whopping 4K 540 Hz refresh rate. That kind of refresh rate headroom means future-proofing for next-gen gaming monitors – if today’s 240 Hz or 360 Hz monitors aren’t enough, Thunderbolt 5 can push even further. In other words, Thunderbolt 5’s display support is overkill in the best possible way, ensuring you won’t outgrow it when the next wave of monitors hits the market.

Why it matters: For creative professionals, the ability to have multiple 4K or 8K monitors running at high refresh is a sight for sore eyes. Think editing video on one screen, previewing on another, and toolbars on a third. And they’re all in crisp resolution.

For gamers, higher refresh rates (120 Hz, 144 Hz, and beyond) mean smoother visuals and a competitive edge in fast-paced games. Even general users who love big dual or triple monitor setups will appreciate that Thunderbolt 5 doesn’t break a sweat handling them. In the Thunderbolt 5 vs Thunderbolt 4 comparison for display support, Thunderbolt 5 is the undisputed champ. It’s essentially a multi-monitor overachiever.

(And if you’re wondering “do I really need three 4K monitors at 144 Hz?”, you probably don’t… but it’s nice to know you could, right?)

3. Much More Charging Power (Up to 240W via USB-C)

If you thought Thunderbolt 5 was only about speed and visuals, you’re missing the bigger picture. It also massively amps up the power delivery. Thunderbolt 4’s charging capability topped out at 140 W, but Thunderbolt 5 raises the bar to a whopping 240 W of power delivery over the same USB-C cable. In practical terms, that means a single Thunderbolt 5 cable can provide enough juice to power beefy gaming laptops, 4K monitors, or high-end workstations. Basically, all the devices that used to require dedicated power bricks.

One standout spec is Thunderbolt 5’s charging power of 240 W, which is 100W more than the 140 W limit of Thunderbolt 4. This aligns with the latest USB Power Delivery 3.1 standard (Extended Power Range), allowing voltages and currents high enough to charge desktop-replacement laptops or multiple devices through a dock. Imagine plugging your chunky 16-inch gaming laptop into a Thunderbolt 5 dock and it actually charges at full speed while driving monitors and peripherals – no separate power adapter needed. Thunderbolt 5 makes that possible.

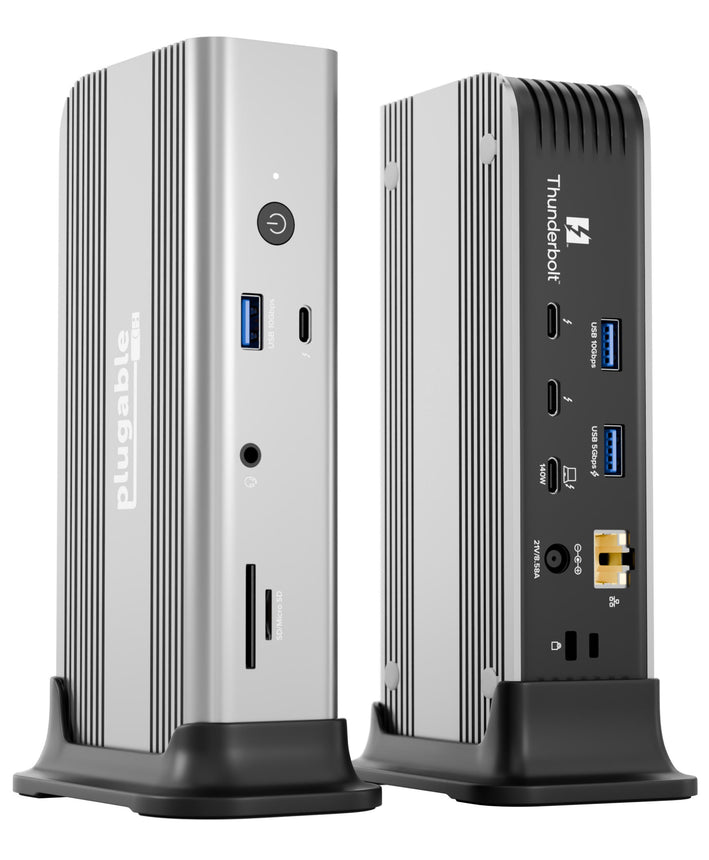

Why it matters: Convenience and simplicity. With Thunderbolt 5, one cable can truly do it all: transfer data at extreme speeds, output video to multiple monitors, and power your devices. For users, this means less clutter and fewer cables/chargers to carry. A Thunderbolt 5 docking station, like the Plugable TBT-UDT3 could potentially replace your laptop’s charger, monitor cables, and USB hub all in one. If you’re frequently on the go or toggling between office and home setups, Thunderbolt 5’s power delivery means you can dock with a single cable and be fully powered and connected. It’s the ultimate one-cable solution. So in the Thunderbolt 5 vs Thunderbolt 4 battle of charging power, Thunderbolt 5 wins by a mile – delivering huge levels of power over a tiny USB-C connector.

4. Faster External Devices (Double the PCIe Throughput)

Thunderbolt has always been about high-speed expansion, and Thunderbolt 5 takes this to the next level for external GPUs, SSDs, AI enclosures, and other high-performance doodads. Under the hood, Thunderbolt 5 doubles the PCI Express data throughput from 32 Gbps (on Thunderbolt 4) to 64 Gbps, effectively moving up from PCIe 3.0 to PCIe 4.0 speeds for external devices. What does that mean for you? In plain English: your super-fast external NVMe SSDs and graphics card enclosures can now run at speeds previously only possible for internal components. The bottleneck for external storage or GPU bandwidth is greatly reduced.

For example, an external Thunderbolt 5 SSD can potentially hit twice the throughput of the fastest Thunderbolt 4 drives, making large file transfers and video editing directly off external media much smoother. Similarly, if you hook up an external GPU (eGPU) to a Thunderbolt 5 port, it has more PCIe bandwidth to play with, which means better performance (closer to what that GPU would achieve if plugged into a desktop). Gamers and 3D professionals using eGPU enclosures will definitely appreciate the extra headroom and fewer compromises when running high-end graphics over a cable.

Why it matters: Thunderbolt 5 essentially future-proofs your setup for the next generation of peripherals. As SSDs get faster and GPUs more powerful, Thunderbolt 4’s 32 Gbps PCIe could have become a choke point. Thunderbolt 5 removes that worry by doubling it. For professionals, this means you can confidently use external storage arrays, AI enclosures, capture cards, RAID drives, or networking adapters without hitting bandwidth limits. For gamers or developers, it means external graphics solutions and other PCIe gadgets will perform better than ever. It’s all about bringing desktop-class performance to laptops and small-form-factor systems via a single Thunderbolt 5 cable. In short, Thunderbolt 5 gives your external devices a “fast lane” to reach their full potential.

(Your external drive will thank you for the breathing room)

5. Backward Compatibility & Cable Simplicity

Last but certainly not least, Thunderbolt 5 manages to deliver these advances without making your existing tech obsolete. One of the best “features” of Thunderbolt 5 is that it remains fully backward compatible. It uses the same USB-C connector and works with earlier Thunderbolt versions and USB standards. In fact, Thunderbolt 5 is built on industry standards (USB4 v2, DisplayPort 2.1, PCIe Gen4) and will play nice with Thunderbolt 4, Thunderbolt 3, and regular USB4/USB-C devices and accessories. In practice, this means you can plug your existing Thunderbolt or USB-C devices into a Thunderbolt 5 port and they’ll function just as they did before. No adapters, no drama – they’ll just operate at whatever their top supported speed is. Likewise, new Thunderbolt 5 peripherals can connect to older Thunderbolt 4 ports, falling back to that port’s capabilities. It’s all seamless and interoperable.

Why it matters: Backward compatibility means no one gets left behind. You won’t have to replace all your peripherals or docks just because you upgrade to a Thunderbolt 5 laptop. Your Thunderbolt 4 dock, Thunderbolt 3 storage drive, or USB-C monitor will still work fine on the new port. This protects your past investments and eases the transition. And the cable compatibility means less e-waste and confusion. The promise of “one cable to rule them all” continues.

You can buy a Thunderbolt 5 device knowing it will integrate with your existing setup, and as more Thunderbolt 5 products emerge, you can mix and match without a tangle of different cables. In summary, Thunderbolt 5 gives you cutting-edge performance without demanding a clean slate. That’s a feature in itself.

(Your drawer full of USB-C cables can breathe a sigh of relief – they’re not headed to the retirement home just yet.)

Thunderbolt 5 FAQ (Common Questions)

Finally, let’s address a few burning questions you might have about Thunderbolt 5:

Q: Is Thunderbolt 5 backward compatible?

A: Yes – fully backward compatible. Thunderbolt 5 works with Thunderbolt 4 and Thunderbolt 3 devices, as well as USB4 and USB 3 devices (basically anything using the USB-C connector). You can plug older Thunderbolt gear into a Thunderbolt 5 port, and it will function at that device’s top supported speed. Likewise, you can use Thunderbolt 5 devices on a Thunderbolt 4 computer (they’ll just be limited to Thunderbolt 4 performance). The Thunderbolt 5 vs Thunderbolt 4 compatibility story is all about harmony: the new standard is designed to integrate seamlessly with what you already own. No awkward adapters or incompatibilities to worry about. Keep in mind that to get Thunderbolt 5’s full 80 Gbps speed or other advanced features, both the host and device need to support Thunderbolt 5. But any mix of old/new will still happily work together, just at the best mutually supported capabilities.

Q: Is Thunderbolt 5 worth it?

A: That depends on your needs. Thunderbolt 5 is a significant leap forward, but not everyone will immediately need what it offers. If you’re a content creator, video editor, 3D designer, or gamer dealing with things like 8K video, high refresh rate multi-display setups, massive file transfers, or demanding external GPUs, then Thunderbolt 5 will be well worth it.

It’s built to meet the growing needs of power users who require extreme bandwidth and performance for their work and play. The ability to have one cable handle 80 Gbps of data, multiple 4K/8K displays, and 240 W of charging all at once is a dream for high-end users. Upgrading to Thunderbolt 5 (or buying devices that support it) will future-proof your setup for years and eliminate many bottlenecks in high-performance workflows.

On the other hand, if your typical use is one or two “normal” monitors, some USB accessories, and standard external drives, Thunderbolt 4 (and even good old USB-C) already cover that pretty well. Most mainstream users won’t immediately feel a difference in everyday tasks like web browsing or casual computing, because Thunderbolt 4 is already very fast. Thunderbolt 5’s benefits really shine under heavy loads and advanced scenarios.

So, if you’re a general consumer with moderate needs, you don’t need to rush out and replace everything with Thunderbolt 5 just yet. But as new devices and PCs start including Thunderbolt 5 (and the prices come down over time), it will naturally become the standard.

Bottom line: Thunderbolt 5 is worth it for enthusiasts and professionals who will utilize its top-tier bandwidth, multi-monitor, and charging capabilities – it’s an investment in high-end performance. If you’re not pushing those limits, you’ll still survive just fine with Thunderbolt 4 for now. But when the time comes to buy your next laptop or dock, opting for Thunderbolt 5 support is a smart way to stay ahead of the curve. After all, it never hurts to have more capability than you need, and Thunderbolt 5 has plenty to spare.
