The Evolution of Thunderbolt Docking Stations: From Niche to Infrastructure

Thunderbolt has evolved from a niche Mini DisplayPort-based interface into the backbone of modern USB-C docking stations, delivering up to 80Gbps bandwidth and 240W power delivery in its latest generation. Thunderbolt 3 introduced 40Gbps speeds and single-cable laptop docking over USB-C, Thunderbolt 4 standardized performance with strict certification requirements, and Thunderbolt 5 dramatically expands display and performance ceilings with Bandwidth Boost technology. For IT teams, creators, and power users building multi-monitor workstations, understanding the differences between USB-C, USB4, Thunderbolt 4, and Thunderbolt 5 is essential for choosing a docking station that delivers predictable performance, reliable multi-display support, and long-term future-proofing.

If you’ve ever plugged a USB-C dock into your laptop and thought, “This should just work,” you’re not alone.

The story of Thunderbolt is really the story of how docking stations transformed from specialty accessories into essential infrastructure for modern work.

Let’s walk through how we got here.

The Big Misconception: “If It’s USB-C, It Must Be the Same”

Here’s the root of most docking confusion: USB-C looks universal. Same connector, same cable shape, same reversible plug. But USB-C is just the connector. It doesn’t guarantee what the port can actually do.

That port might support:

• Basic USB 2.0
• USB 3.x (5Gbps or 10Gbps)
• USB4 (20Gbps or 40Gbps)
• DisplayPort Alt Mode (video output)
• Thunderbolt 3
• Thunderbolt 4
• Thunderbolt 5
• Power Delivery up to various wattages

Same port, completely different capabilities.

This is where Thunderbolt changed the conversation. Thunderbolt combined PCIe and DisplayPort into one connection (and later generations integrated USB Power Delivery). Early Thunderbolt docks were niche devices on the bleeding edge of technology, used mostly by enthusiasts.

That changed when Thunderbolt adopted USB-C.

Thunderbolt 1 & 2: The Pioneer Years (2011–2015)

Introduced in 2011 by Apple and Intel, Thunderbolt used the Mini DisplayPort connector and aimed to combine PCIe and DisplayPort into a single high-speed link. Thunderbolt 1 delivered up to 10Gbps, and Thunderbolt 2 doubled that to 20Gbps, enabling fast external storage and display expansion. It was technically impressive, but positioned at the premium end of the market and adopted mostly in professional Mac environments.

What Thunderbolt 1 & 2 Introduced

• Thunderbolt 1: up to 10Gbps
• Thunderbolt 2: up to 20Gbps
• PCIe 2.0 tunneling over two 10Gbps channels (Thunderbolt 1), aggregated to 20Gbps in Thunderbolt 2
• Daisy-chaining support

For creative professionals and high-performance users, this was revolutionary. External storage could behave much more like internal drives, and multi-device expansion over a single cable became realistic.

Why It Stayed Niche

Early Thunderbolt adoption was concentrated primarily within the Mac ecosystem, where Apple embraced the technology ahead of most PC manufacturers. Combined with premium hardware pricing, this limited broader Windows adoption in the early years. Docking stations were also expensive and often positioned as high-end accessories rather than mainstream productivity tools. Thunderbolt 1 and 2 did not support standardized laptop charging over the Thunderbolt cable (USB Power Delivery did not exist in this form yet), preventing true single-cable docking. As a result, early solutions focused heavily on display connectivity and professional-grade peripherals rather than the all-in-one workstation experience users expect today.

Thunderbolt 1 and 2 were powerful for the time, but not mainstream.

Thunderbolt 3: The USB-C Revolution (2016)

Thunderbolt 3 marked the true inflection point for modern docking stations. By moving to the USB-C connector and doubling total bandwidth to 40Gbps, it unified data, video, PCIe expansion, and up to 100W of Power Delivery over a single cable. For the first time, external devices could leverage up to four lanes of PCIe 3.0 (up to ~32Gbps), making high-speed storage, networking, and even external GPUs viable in mainstream laptops.

What Thunderbolt 3 Delivered

• Up to 40Gbps bandwidth
• Up to 100W Power Delivery
• Up to 4 lanes of PCIe 3.0 (implementation could be x2 or x4)
• Support for at least one 4K display (dual 4K possible depending on system implementation)
• Single-cable laptop docking

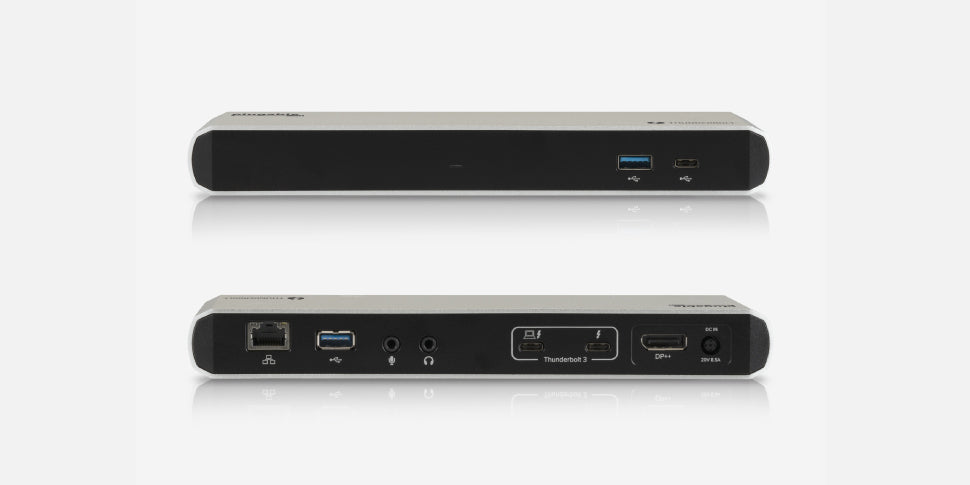

The Docking Explosion

Thunderbolt 3 allowed laptops to connect to power, displays, storage, networking, and peripherals through a single cable, making true one-cable workstation setups practical at scale. Enterprise adoption accelerated, and a surge of third-party docking manufacturers entered the market to meet growing demand.

Intel intentionally lowered the minimum hardware bar for Thunderbolt 3 hosts while still guaranteeing baseline functionality. That strategy accelerated adoption across the PC ecosystem. But it also introduced flexibility in implementation.

The Display Variability Problem

While Thunderbolt 3 required support for at least a single 4K display, dual 4K capability depended on how many DisplayPort streams the system exposed internally. PCIe bandwidth could also vary between x2 and x4 configurations.

In practice, this meant:

• Some systems supported dual 4K displays over a single Thunderbolt port.
• Others required multiple ports to achieve the same result.
• Some only supported a single external display despite advertising 40Gbps Thunderbolt 3.

From a consumer perspective, the Thunderbolt logo suggested consistency. From an engineering perspective, display support was determined by the internal GPU pipeline and system design.

The result was a powerful but less predictable ecosystem. Dock compatibility became more complex than the 40Gbps number implied, and IT teams often had to scrutinize system specifications carefully to ensure consistent multi-display behavior across deployments.

Thunderbolt 4: Standardization and IT Confidence (2020)

Thunderbolt 4 didn’t increase peak bandwidth. It remained at 40Gbps. Instead, it focused on eliminating ambiguity. Where Thunderbolt 3 allowed flexibility, Thunderbolt 4 tightened the requirements. The goal wasn’t to go faster; it was to become predictable.

Thunderbolt 4 Minimum Requirements

Every Thunderbolt 4 system must support:

• 40Gbps bandwidth
• Support for dual 4K displays (or one 8K display) as a minimum certification requirement
• 4 lanes of PCIe 3.0
• Intel VT-d DMA protection
• Wake-from-keyboard and mouse support
• Certified 40Gbps cables up to 2 meters

Unlike Thunderbolt 3, PCIe 3.0 x4 was no longer optional. Multi-display support was no longer dependent on implementation choices. Security features were no longer left to system vendors.

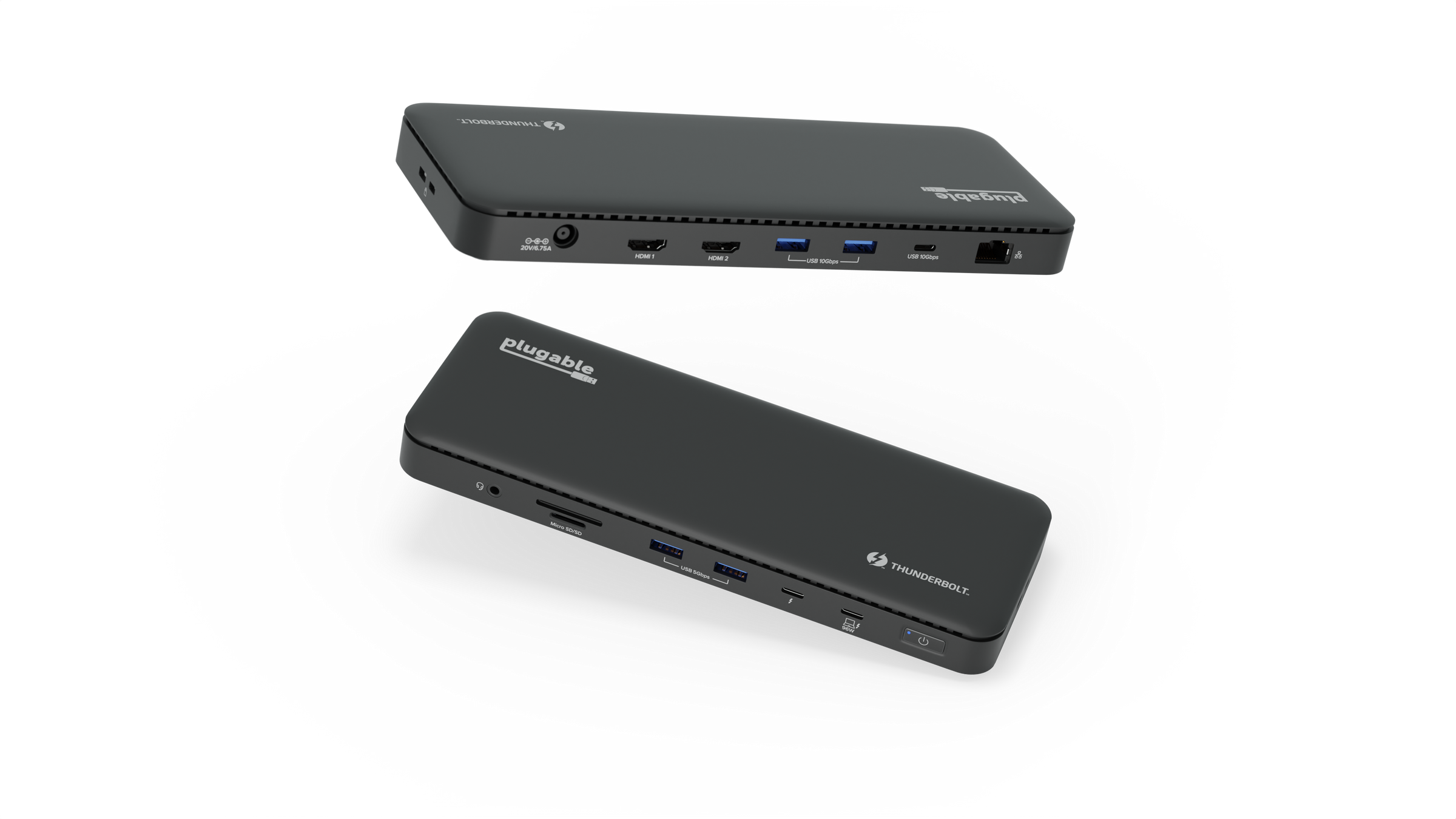

What This Means for Docking Stations

Thunderbolt 4 gave docking stations something Thunderbolt 3 couldn’t always promise: consistency. Multi-display support was guaranteed, PCIe bandwidth was standardized at four lanes of PCIe 3.0, and behavior across laptop models became far more predictable. For IT teams, this eliminated much of the spec-sheet guesswork required with Thunderbolt 3. Thunderbolt 4 raised the floor on performance rather than the ceiling. This made large-scale dock deployments significantly easier to manage.

USB4 Enters the Picture (2019)

USB4 was introduced in 2019 and is built on the Thunderbolt 3 protocol architecture, contributed to the USB Implementers Forum by Intel. On the surface, it looks very similar to Thunderbolt - using the same USB-C connector and supporting high-speed data, display output, and PCIe through protocol tunnelling.

What USB4 Delivered

• Up to 20Gbps or 40Gbps bandwidth (USB4 v1)
• DisplayPort tunneling
• PCIe tunneling (optional)
• USB 3.x and USB 2.0 compatibility
• Dynamic bandwidth allocation between data and display
• Optional backward compatibility with Thunderbolt 3

Note: USB4 version 2.0 increases symmetric bandwidth to 80Gbps, with asymmetric display-oriented modes up to 120Gbps in one direction, though adoption is still emerging.

What This Means for Docking Stations

USB4 made high-performance connectivity more broadly available by bringing Thunderbolt-class architecture into the USB standard. But unlike Thunderbolt 4, it did not mandate strict minimum implementation requirements. PCIe tunneling remained optional, lane counts were not enforced, and 40Gbps support was not guaranteed under USB4 v1.

That meant a USB4 port might perform very similarly to Thunderbolt 3 - or it might offer reduced bandwidth or display capability depending on system design.

For docking stations, especially in enterprise environments, this variability reintroduced the need to examine system specifications closely. Microsoft’s updated Windows Hardware Compatibility Program (WHCP) requirements have since pushed for more consistent USB4 and USB-C port behavior on certified Windows 11 systems, helping reduce confusion. Even so, outside of Windows, USB4 does not impose the same strict display and PCIe minimums as Thunderbolt 4.

USB4 is powerful, but without minimum requirements across all implementations, it is not inherently as predictable as Thunderbolt 4

Thunderbolt 5: The Bandwidth Leap (2024+)

Thunderbolt 5 represents the most significant architectural leap since Thunderbolt 3. Rather than refining the 40Gbps standard, it dramatically expands total bandwidth, PCIe throughput, display capacity, and power delivery; pushing single-cable connectivity into true workstation-class territory.

What Thunderbolt 5 Supports

• Up to 80Gbps bidirectional bandwidth
• Bandwidth Boost up to 120Gbps for display-heavy workloads
• PCIe 4.0 x4 tunneling (up to 64GT/s raw bandwidth)
• Support for USB Power Delivery Extended Power Range (up to 240W, host dependent)
• Thunderbolt 5 certification requires support for dual 6K displays (baseline requirement)
• Support for dual 8K displays (host dependent)
• Support for up to three 4K displays at high refresh rates (host dependent)
• Enhanced support for external GPUs
• Optimized for high-performance storage

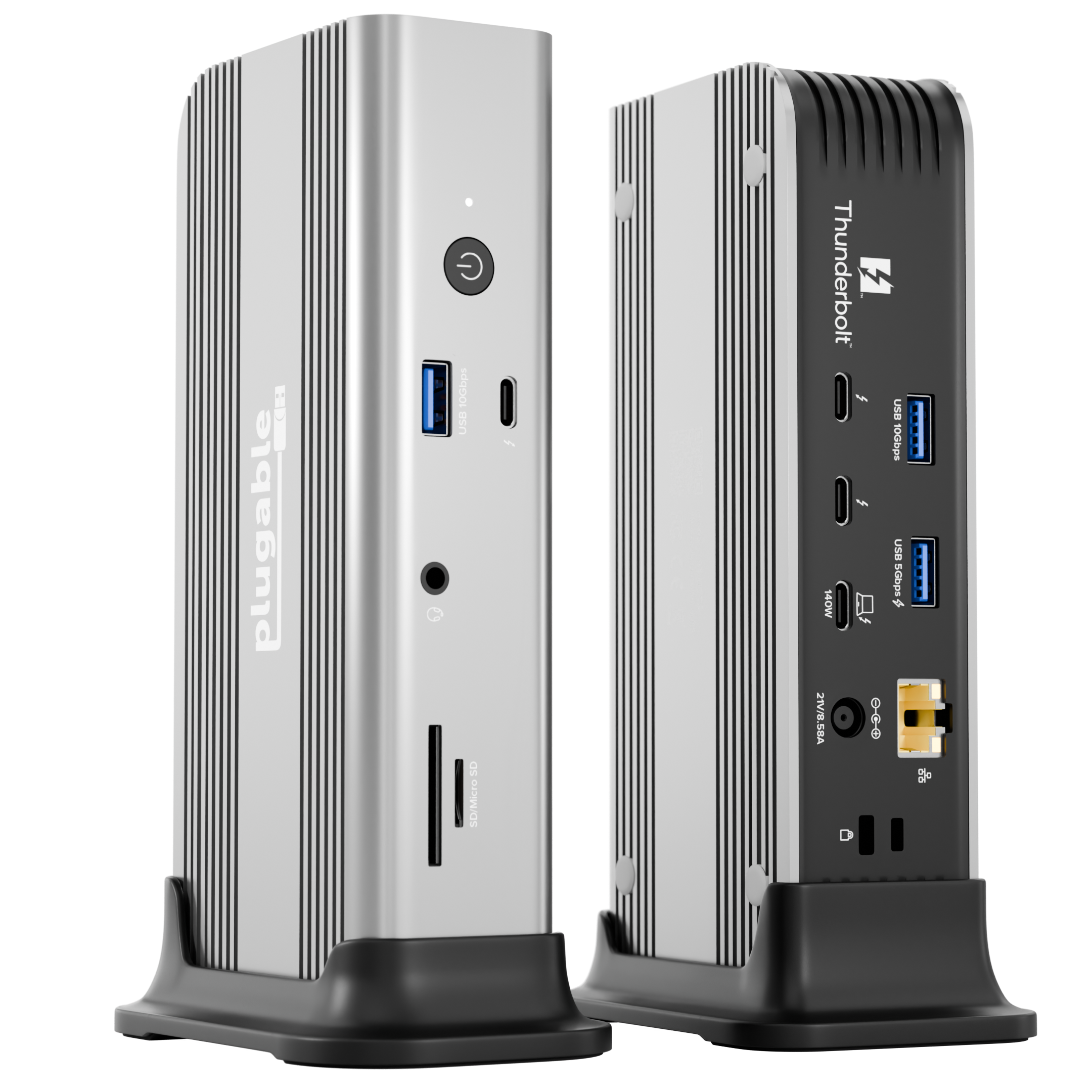

Docking Implications

Thunderbolt 5 moves docking beyond high-performance into full workstation infrastructure. With PCIe 4.0 x4 tunneling, external GPUs and high-speed storage operate with significantly less bottlenecking than previous generations. The expanded display bandwidth enables true multi-8K setups or multiple high-refresh 4K monitors without compromising data performance. The jump to 240W power delivery supports larger mobile workstations over a single cable, eliminating the need for separate power bricks in many deployments. For creators, engineers, AI workloads, and data-intensive professionals, Thunderbolt 5 meaningfully expands what’s possible. For enterprise IT, it introduces long-term performance headroom for premium systems where bandwidth density, display scalability, and infrastructure longevity matter most.

Triple Display: Capability vs. Reality

Thunderbolt 5 introduces enough bandwidth to make triple 4K display configurations technically feasible - particularly at higher refresh rates. With 80Gbps of symmetric bandwidth and up to 120Gbps in Bandwidth Boost mode, the connection itself is no longer the primary constraint.

However, display support is still ultimately determined by the host system.

While Thunderbolt 5 mandates dual 6K support as a baseline, configurations such as triple 4K or dual 8K remain host-dependent. They rely on the GPU’s display pipeline, the number of exposed DisplayPort streams, Display Stream Compression (DSC) support, and overall system design. At the time of writing this blog post, the only  shipping laptops on the market that support three independent 4K displays at 144Hz over a single Thunderbolt 5 connection are Apple’s M5 Pro and M5 Max MacBook Pros

Thunderbolt 5 expands what’s technically possible, but it does not guarantee that every Thunderbolt 5 system will expose the full display ceiling. As with previous generations like Thunderbolt 3, understanding host capabilities remains essential when planning multi-monitor dock deployments.

Clear Takeaways

Over the past decade, Thunderbolt has evolved from a premium, niche interconnect into foundational infrastructure for modern workstations. Thunderbolt 1 and 2 proved the concept. Thunderbolt 3 made single-cable docking mainstream. Thunderbolt 4 made it predictable. Thunderbolt 5 expands the performance ceiling once again.

What began as cutting-edge connectivity for creative professionals has become essential infrastructure for hybrid work, enterprise deployments, and high-performance mobile computing.

When choosing a docking solution today, the right question often isn’t just “How fast is it?” It’s “What does it guarantee?” Understanding how Thunderbolt evolved, and what each generation enforces, turns docking decisions from guesswork into long-term infrastructure planning.

What’s your current Thunderbolt deployment strategy? TB4 standardization or waiting for TB5? Share your approach in the comments.

Frequently Asked Questions

What is the main difference between Thunderbolt 4 and Thunderbolt 5? Thunderbolt 5 supports up to 80Gbps bidirectionally (120Gbps/40Gbps with Bandwidth Boost). This is a significant jump from the 40Gbps bidirectional limit found in Thunderbolt 4.

Is Thunderbolt 5 backward compatible with older cables? Thunderbolt 5 ports maintain compatibility with previous Thunderbolt versions and USB4. However, users need a Thunderbolt 5-certified cable to achieve maximum 80Gbps or 120Gbps speeds.

Does Thunderbolt 5 improve laptop charging? Thunderbolt 5 provides a minimum of 15W for peripherals, and can support up to 240W Extended Power Range (EPR) Power Delivery for host laptop charging. Previous USB-C Thunderbolt generations were limited to 100W Standard Power Range (SPR) Power Delivery.

If USB-C ports look the same, how do I know what they support? USB-C is just the connector. The capabilities depend on the underlying standard - USB, USB4, or Thunderbolt - and how the system is implemented. Checking the system specifications or looking for Thunderbolt certification is the most reliable way to confirm supported bandwidth and display capabilities.
