Why Your Cables Are the Hidden Bottleneck in the Thunderbolt 5 Era

You spent a lot of money on that workstation. Maybe it's a new MacBook Pro with M5 Max. Maybe it's a Windows machine loaded with a top-tier GPU and a Thunderbolt 5 dock. You have a 4K monitor, a fast NVMe SSD in an enclosure, and a charging cable that came with... something, at some point. You're not sure what.

That mystery cable in your setup may be the thing holding everything back.

The Most Expensive Mistake in Your Setup Costs $10

For years, most users got away with mixing and matching USB-C cables because the performance penalties were tolerable. If the USB cable you were using dropped your transfer speed by half, most users wouldn’t notice. The slowdown would only cost you a few extra seconds.

Thunderbolt 5 makes the tradeoff harder to ignore. With speeds up to 120 Gbps under Bandwidth Boost and Power Delivery support up to 240W, the performance gap between the right cable and the wrong one is no longer a minor annoyance. It's the difference between a workstation that performs as advertised and one that frustrates you every day.

The irony is that the cable looks identical regardless of the performance.

The "Same Plug, Different Pipe" Problem

The USB-C standard defines the shape, but there can be lots of differences in performance. That single fact is behind most of the cable confusion that exists today.

A USB-C cable can be wired for USB 2.0 speeds, which top out at 480 Mbps. It can be wired for USB 3.2 Gen 1 (5 Gbps) or Gen 2 (10 Gbps). It can support USB4 at 40 Gbps. Or it can be a fully certified Thunderbolt 5 cable capable of handling 80 to 120 Gbps of data and 240W of power. Every single one of these cables uses the same oval plug that fits the same port.

The connector looks the same. The cable specifications are what matter.

That’s where a lot of the confusion starts. You go to a big-box store or scroll through Amazon and see a USB-C cable for $8.99 labeled "high speed" or "fast charging." There's a good chance the cable is wired only for charging, so the lines that carry the data are capped at USB 2.0. Plug it into a Thunderbolt 5 dock, and it won’t work at all.

How to Know You're Using the Wrong Cable

Bad cables are notorious for sending users down the wrong rabbit hole. They fail just enough to mimic issues like hardware failure, when the fix is actually sitting right in the port.

Here's what to watch for:

• Your screen wavers or goes black briefly when you plug in a drive or accessory through a dock.
• Your transfer speeds are inexplicably slow – a 10 Gbps-rated SSD transferring at 40MB/s instead of 1GB/s.
• Your laptop loses charge while connected to a dock that's supposed to charge it.
• Accessories disconnect randomly without explanation.
• You can't run a High Refresh Rate external display at its rated resolution.

These are the symptoms of signal capability failure. The hardware is fine. The dock is fine. The cable is the problem, and it will send you on a troubleshooting spiral that leads nowhere until you swap it out.

The Engineering Reality of Thunderbolt 5

To understand why cable quality matters so much at Thunderbolt 5 speeds, you have to think about what that cable is actually doing.

Thunderbolt 5 transmits up to 80 Gbps bidirectionally, and with Bandwidth Boost enabled, it can push 120 Gbps in one direction to support demanding display configurations. It also supports 240W Power Delivery – enough to charge even the most power-hungry laptops.

At those speeds, cable construction is everything. A certified Thunderbolt 5 cable uses precisely controlled wire geometry, proper shielding, and carefully designed signal pairs to maintain signal integrity across the entire length of the cable. A cheap, unshielded cable introduces noise and signal deterioration that the protocol has to compensate for – or simply can't.

This is where the distinction between active and passive cables matters. Passive cables use simple copper conductors to carry the signal. They work fine at shorter lengths and lower speeds. Active cables include a small chip that amplifies and retimes the signal, enabling longer cable runs at Thunderbolt 5 speeds without data loss. With a one-meter (3.3 ft) Thunderbolt cable, you could often get away with a good passive cable. At two meters, an active cable is needed to maintain performance.

Think of it like a distribution warehouse at peak shipping season. Thunderbolt 4 gives you one loading dock and a single truck bay. When utilizing Bandwidth Boost, Thunderbolt 5 gives you three bays running simultaneously, and during your biggest outbound push, you can commandeer a fourth. The inventory – your data – hasn't changed. The warehouse hasn't changed. But the rate at which you can move product in and out is a completely different operation.

The Cost of Mystery Cables

The counterargument I always hear is: "Certified cables are expensive." And yes, a certified Thunderbolt 5 cable costs more than the generic USB-C cable that came bundled with your last phone because it has been tested to comply with Thunderbolt standards. But let's think about what mystery cables actually cost you.

First, there's support debt. How much time have you spent troubleshooting a docking station, a display, or a storage device that was actually performing fine – its connection to your system was just degraded by an uncertified cable? An hour of troubleshooting is worth more than the price difference between a $10 cable and a $30 certified one.

Also, there's the performance reality. A Thunderbolt 5 workstation running on a USB 2.0 cable isn't going to work.

Your Cable Audit Checklist

Go to your desk, empty the junk drawer, and lay out every USB-C cable you own. It’s time to find out which of these are actually fit for a Thunderbolt 5 workstation and which are just glorified phone chargers.

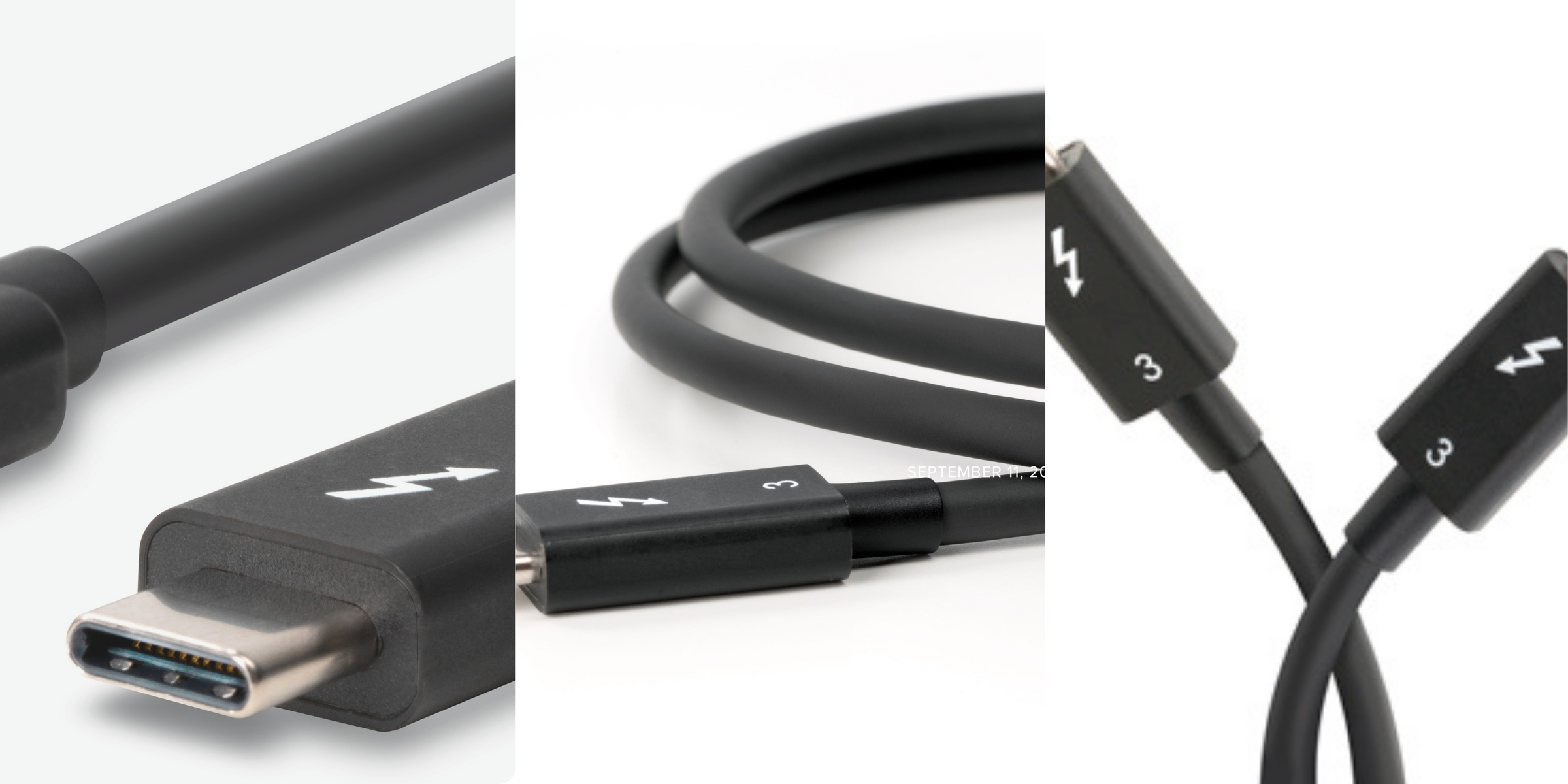

• Does the cable have a Thunderbolt logo? That's a certified Thunderbolt cable. Look for the generation marking.
• Does it have a USB4 marking? That means up to 80 Gbps.
• Does it say "charging only" or have no data markings at all? Keep it for charging a phone. Don't run it through a dock.
• Is there no marking at all? Assume charging only or USB 2.0 speeds and plan accordingly.
• For any cable running to a Thunderbolt 5 dock or high-bandwidth device, use a certified Thunderbolt 5 cable rated for the required speed.
• For runs longer than one meter, look specifically for an active cable.
• Verify your cable is rated for 240W if you're relying on it to charge a power-hungry laptop through a dock.
